产品名称:SZG9010 Portable Water Service Vehicle
产品编号:
点击次数:2672次
SZG9010 Portable Water Service Vehicle    编号:
产品描述:

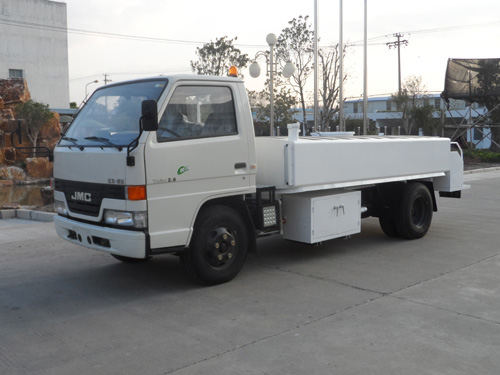

SZG9010 Portable Water Service Vehicle



DESCRIPTION

TheSZG9010 series is designed for providing clean water for the aircraft, all the components are all made of stainless steel, this series is suitable for all the types of the aircraft, the engineers adopt advanced techniques and do some improvement to make the car can be normally used in bad weather and ramp station, so this series can shorten the retention time of the aircraft, reduce the maintenance cost and improve the economic benefit. It suitable for A300,A310,A320,A340,B727,B737,B747,B757,B767C919

MAIN SPECIFICATION
Tare                    2935kg
Total weight             5790kg
L * W *H                 5960X1880X2140mm Wheel base              3360mm
Wheel track front/ rear   1385/1425mm
Ground clearance        200mm
Turning  radius          6400mm
Max Speed               40km/h
Clean water Tank Volume Front Suspension/Rear Suspension
DESCRIPTION
Engine Model          JMC JX493ZLQ3A
2700L 1015/1467
Engine type        Inline four-cylinder diesel turbocharged inter-cooled diesel engine
Transmission Model     MSB-5M
Chassis Model         JX1060TG23
Transmission Type     5 forward ,1 back, manual transmission
Front Axle Load        2200kg

Rear Axle LoadBrake system(driving)
Brake system(parking) Steering system systemTire
Diesel Fuel TankVolume
Hydraulic Oil Tank Hydraulic Oil Pump
Hydraulic Motor
Fresh Water Pump
Water PipeConnector
Water Flow meter
Water Safety Valve
Water Filters Warning Light
Spare Tire
Fire Extinguisher
3590kg
Vacuum booster dual-circuits power hydraulic brake system
The central control, manual, drum
hydraulic power steering                      7.00-16LT
100L
80L
50l/min, gear pump, flow pressure 20.6mpa
Displacement of 12.6 mL/r,speed 2950r/min,pressure is 20.6 Mpa
Stainless steel,centrifugal,flow 136l/min,pressure is 0.44Mpa,the speed of 2950r/min
Stainless steel,3/4”
digital
3/4”,Stainless steel or copper
Copper
Yellow
7.00-16LT
5L


SZG9010 Portable Water Service Vehicle
