DESCRIPTION

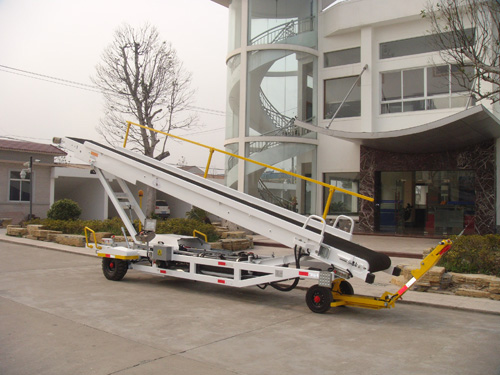

SZG5030 towable conveyor belt loader is a kind of easy operation, simple maintenance of special equipment at the airport to carry passenger baggage and cargo up and down. Vehicle assembly adopts the world famous manufacturers main products, solid vehicle structure, driving and operating performance. On the basis of the basic model, and can be optional according to customer requirements of different types of accessories and equipment, to meet the operational requirements in different areas and use conditions. For the load door height from 1.2 mm to 1.2 mm of various models of service, especially suitable for services such as Airbus 319 aircraft, the clearance between engine and the vehicle model is too narrow to avoid the damage to the aircraft. Boom frame can load up to 1200 kg, transfer device with hydraulic balance device, single biggest can carry 400 kg with adjustable speed.

DIMENSION

The vehicle L*W*H

Boom frame

Work height

Total weight

Tires

The wheelbase

Wheel base

Engine

Rated power Fuel tank capacity The hydraulic oil tank capacity battery specification Hydraulic pump specifications Hydraulic motor specifications The belt running speed

8000 mm * 1700 mm * 1720 mm

8000 mm (L)* 800 mm (W), belt width 700 mm

front 1260mm-4200mm rear 465mm-900mm

2010 kg

front 7.00-9 rear 4.00-8

4080 mm

front 1445 mm rear600 mm

Kubota Z482 - E3B - SAE - 2 water coolant diesel engine with electric start function, manual speed adjustment

9.9kw / 3600 RPM

60L

80L

12v 80ah

Changyuan CBT - FA412.5 - AFR

Italy Sam BG400NC25

0.20 m/s (900 RPM) engine

0.50 m/s (2250 RPM) engine
