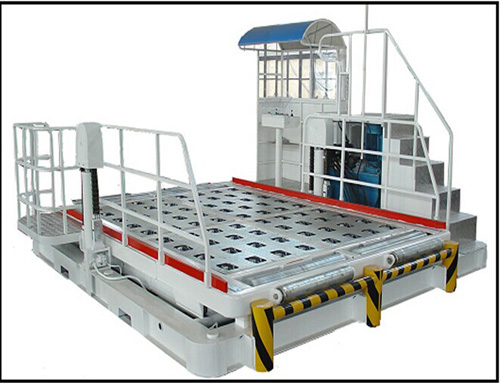

DESCRIPTION
Purpose: Mainly used in airport warehouse and goods control center and solving the problem of the height turnover between container freight train and platform trailer in the platform and container transportation.
Features: The motivity come from 380V AC. The containers which type below Simple AKE(LD3) can rotate in any direction.

Dimensions (length×width×height)	4280 mm×4380 mm×1450 mm	no rain shed
work table  (length×width)	4250 mm×2800 mm
the highest work table arrive(height away from the ground)	1600 mm
the lowest work table arrive(height away from the ground)	500 mm
work table (full load 7t)	arise speed   15 sec	descend speed 10 sec
work table (no-load)	arise speed   10 sec	descend speed 15 sec
work table transmission speed	280 sec	with adjustable speed device
hydraulic pressure system work pressure	100-110 Kg / cm2	with adjustable pressure  device
hydraulic oil brand	wear-resistant 46#
electric system work pressure	AC380V (electric motor)	DC 24V (system)
entire vehicle weight	6100 KG	theoretical arithmetic (±5%)
