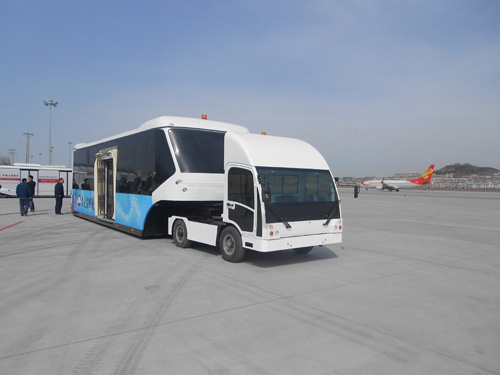

SZG3000 Towable Mobile Lounge

Towed mobile lounge Bridge is designed for connecting the passenger steps with airport shuttle buses and flight attendants vehicle, After the plane arrived at the apron, there is no airport boarding bridge for the passengers to use, especially when the passengers faced with cold winter, hot summer, rain, snow, windy weather, towed mobile lounge bridge can solved the inconvenience of bad weather to passenger and help the airport to achieve a more humanized service. We have applied patent for the towed mobile lounge bridge. The door on the left connect with the passenger steps, the right door connect with VIP bus and the door at the end connect with the shuttle bus. The towed mobile lounge is equipped with (1) Double rotary device to open the door (2) around the outside of the door frame, equipped with folding after retractable awning. (3) under the frame of the floor board ,there is one pedal to connect with the passenger steps.

DIMENSION

TRACTR CONDUCTOR SPECIFICATION

Tractor conductor length     3840mm          Engine      four cylinder diesel engine (57 kw, 3600 r/min)

Transmission YYX25 hydraulic transmission two forward a reverse

Tractor conductor width      2200mm

Rear axle    HF130 rear axle, 3000 kg load

Mobile lounge width         3000mm

Crane brake double circuit, four-wheel hydraulic brake

Tractor conductor height      2980mm

Mobile lounge height       3100mm

Tires        front wheel 7.00-15

7.00 15-12 - rear wheel

Ground clearance         90mm

Mobile lounge length  11000mm Front axle high strength hydraulic steering bridge, 2700 kg load

Mobile lounge length       11000mm

Mechanical  parking brake, the rear wheel braking

_{Steering       hydraulic steering system}

Wheelbase                2100mm   Traction institutions hinged plate

Turning radius          5300mm

 Fuel tank capacity of 50 litres

Tractor conductor weight  2050kg

The hydraulic oil tank 80 litres

Total Weight           7500kg
